HealStrap
The task was to select an existing sports product and enhance its functionality by integrating electronic technology to improve the user experience and performance.
I chose to focus on an ACL knee brace because ACL injuries are a common and serious sports injury, particularly in high-impact and pivoting sports. Recovery can be long and challenging, so I wanted to explore how existing knee braces could be improved through the integration of electronics to better support athletes during rehabilitation and their return to sport.
Process
-
![]()
Sketch

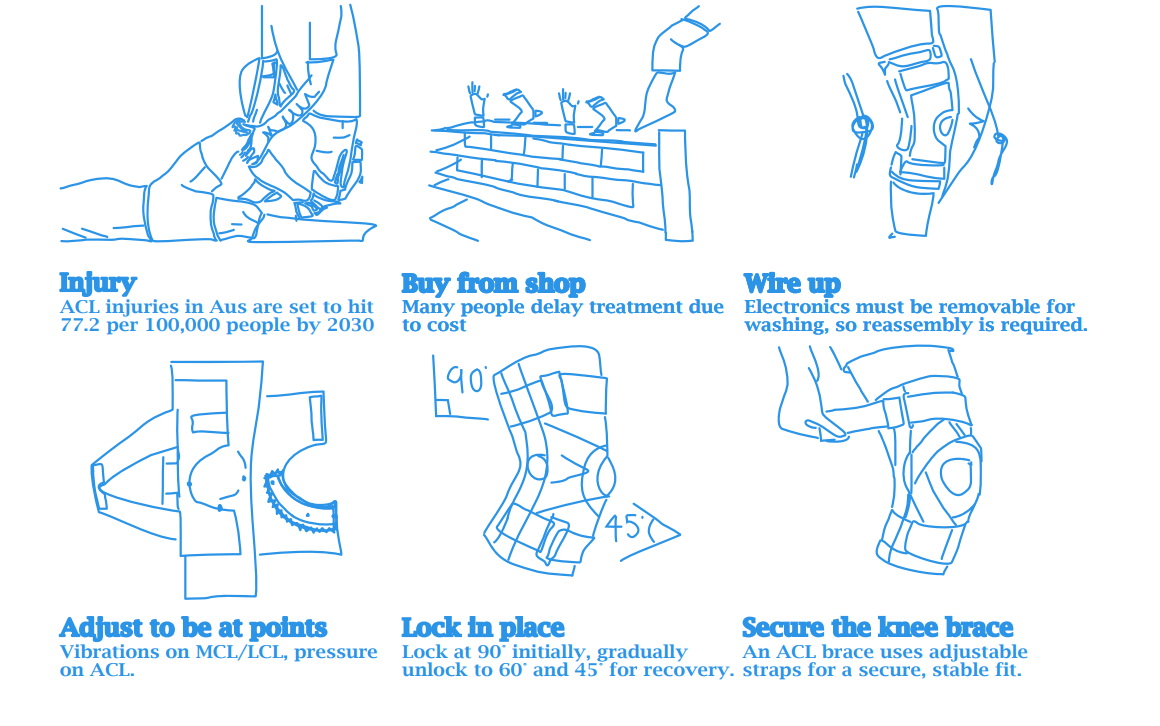

Going through the user journey and using research to identify key pain points and features to integrate into the brace.
-
![]()
Prototype

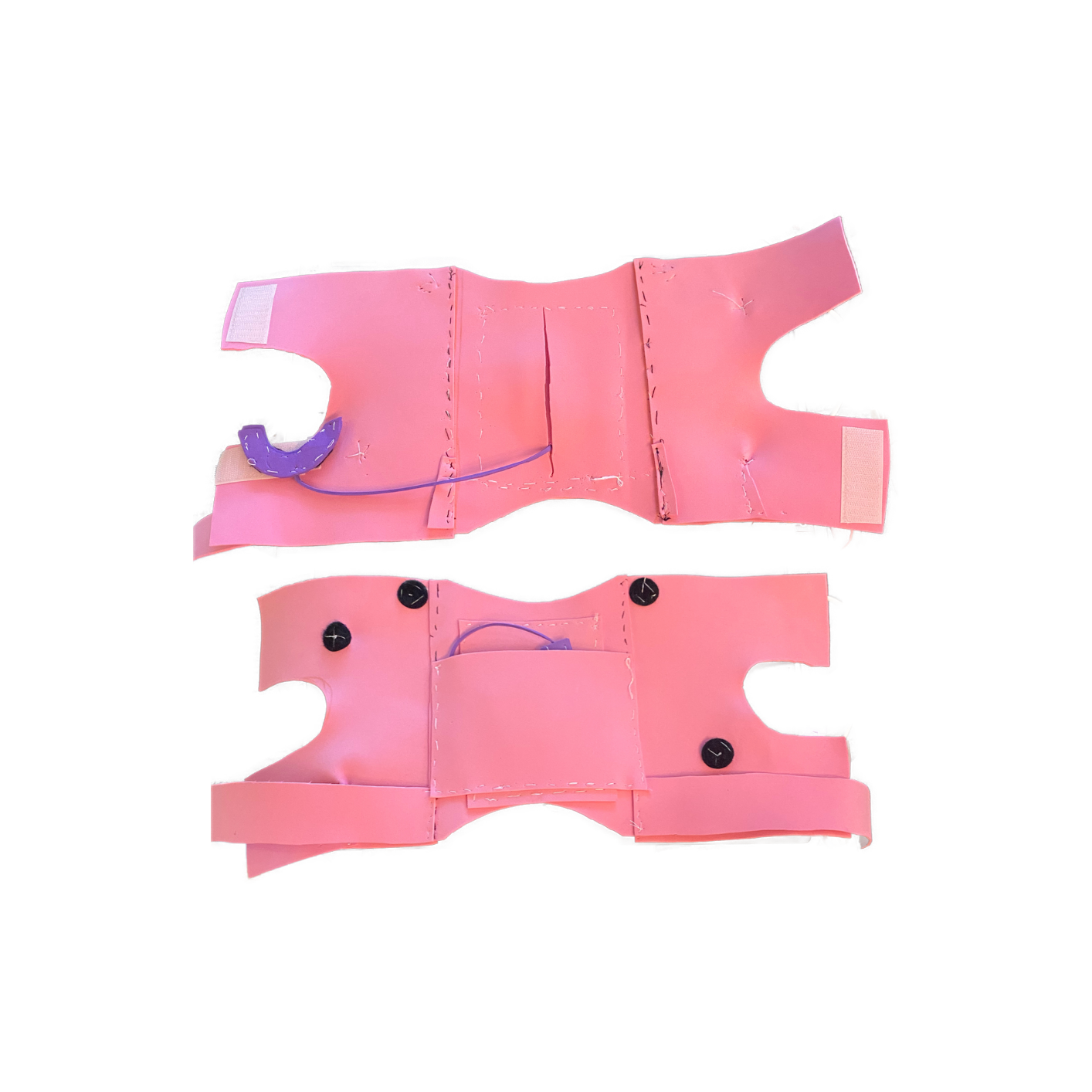

Prototyping allowed me to explore the ergonomics and effectiveness of the design, helping me refine its fit and functionality.
-
![]()
Testing

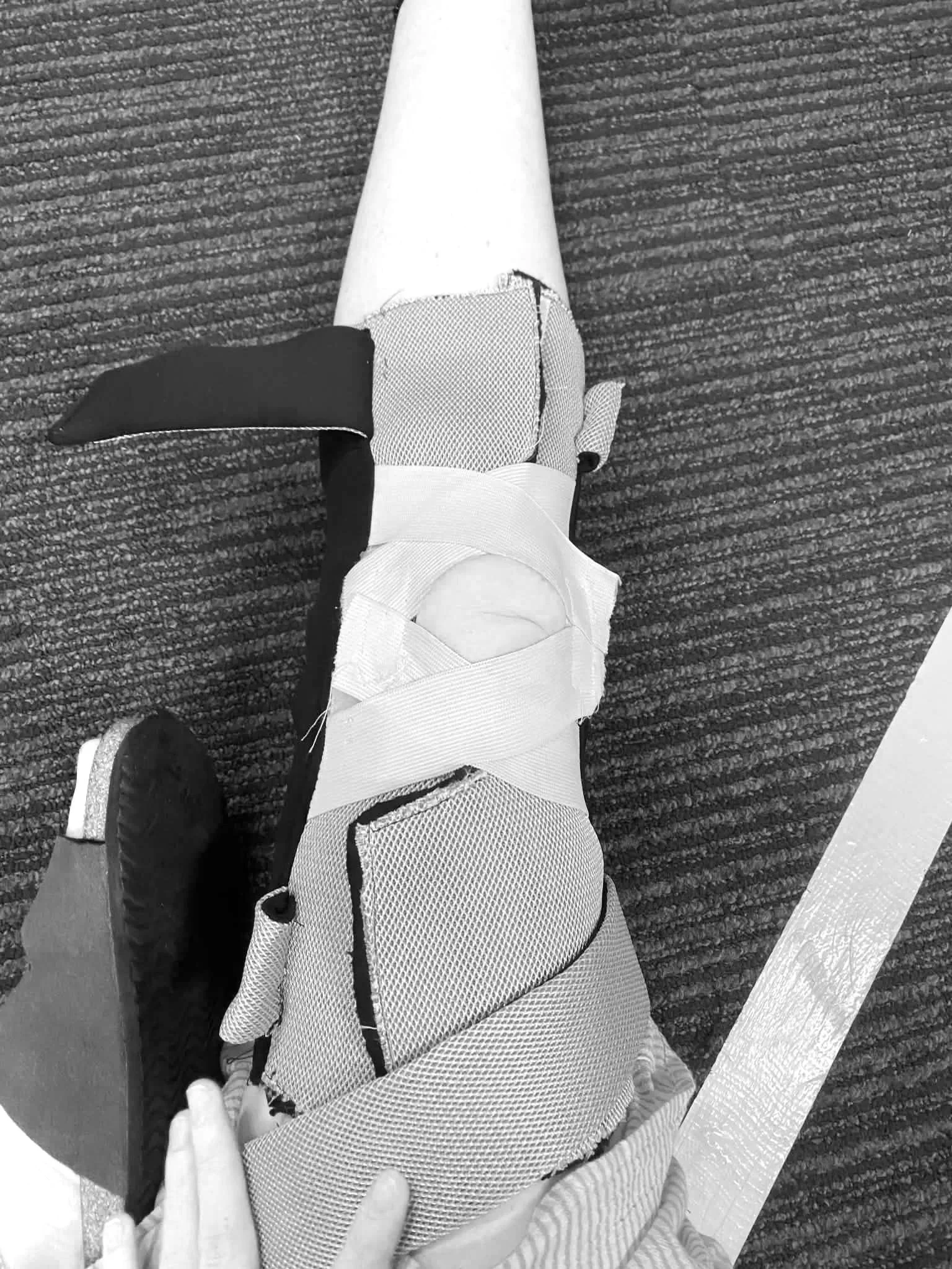

For the testing stage, I used fabric prototypes to test the design and gathered feedback from classmates, people with ACL injuries, and medical professionals.
-
![]()
Final

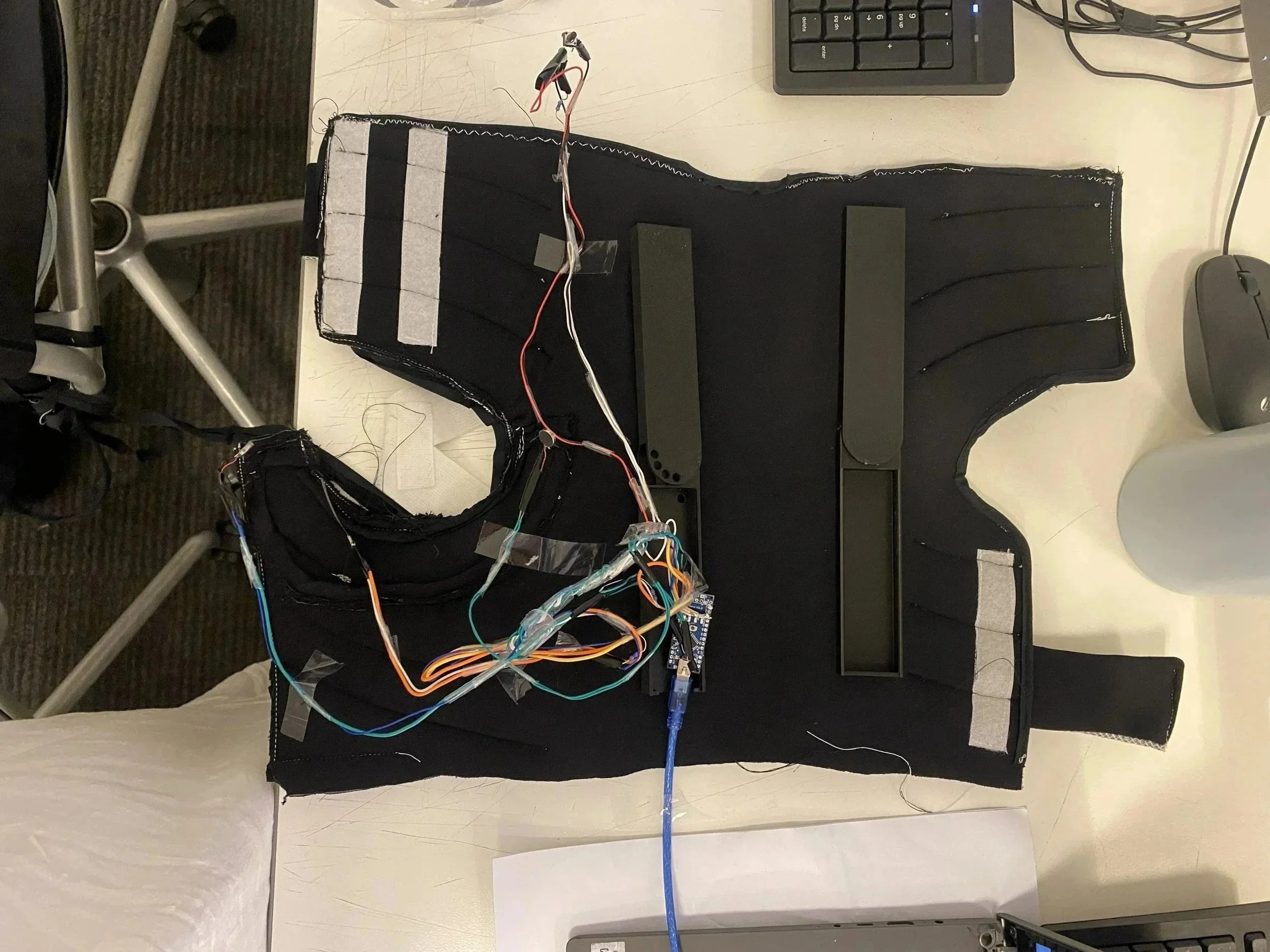

For the final design, I integrated all the internal electronics, ensuring the wiring was protected while allowing the components to be easily removed for washing.
Final Design

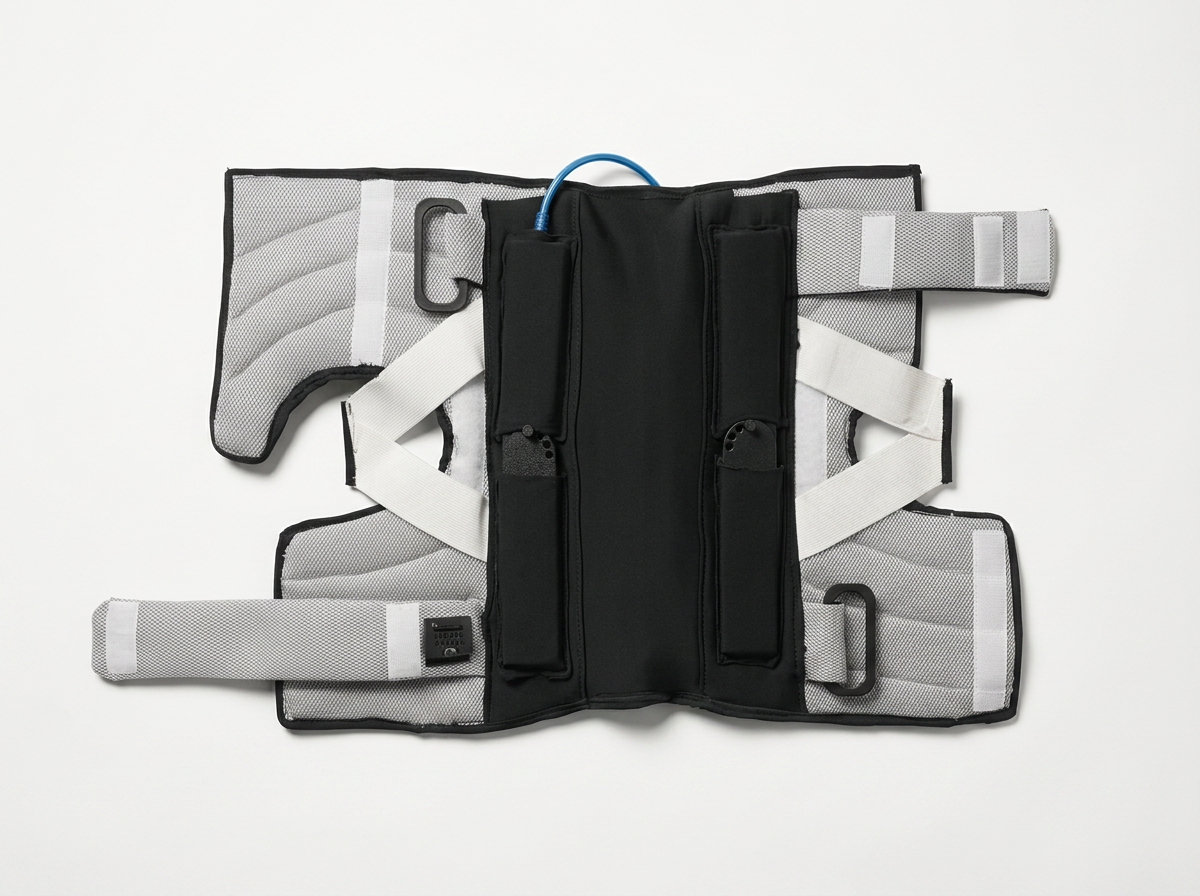

Adjustable vibration sensors – positioned over the ACL area to provide targeted vibration intended to support recovery.
User-controlled activation – a button allows the user to switch the vibration feedback on when needed.
Pressure monitoring – maintains consistent pressure around the knee and detects when the brace becomes too loose.
Warning light – alerts the user when the brace loses the required pressure or fit.

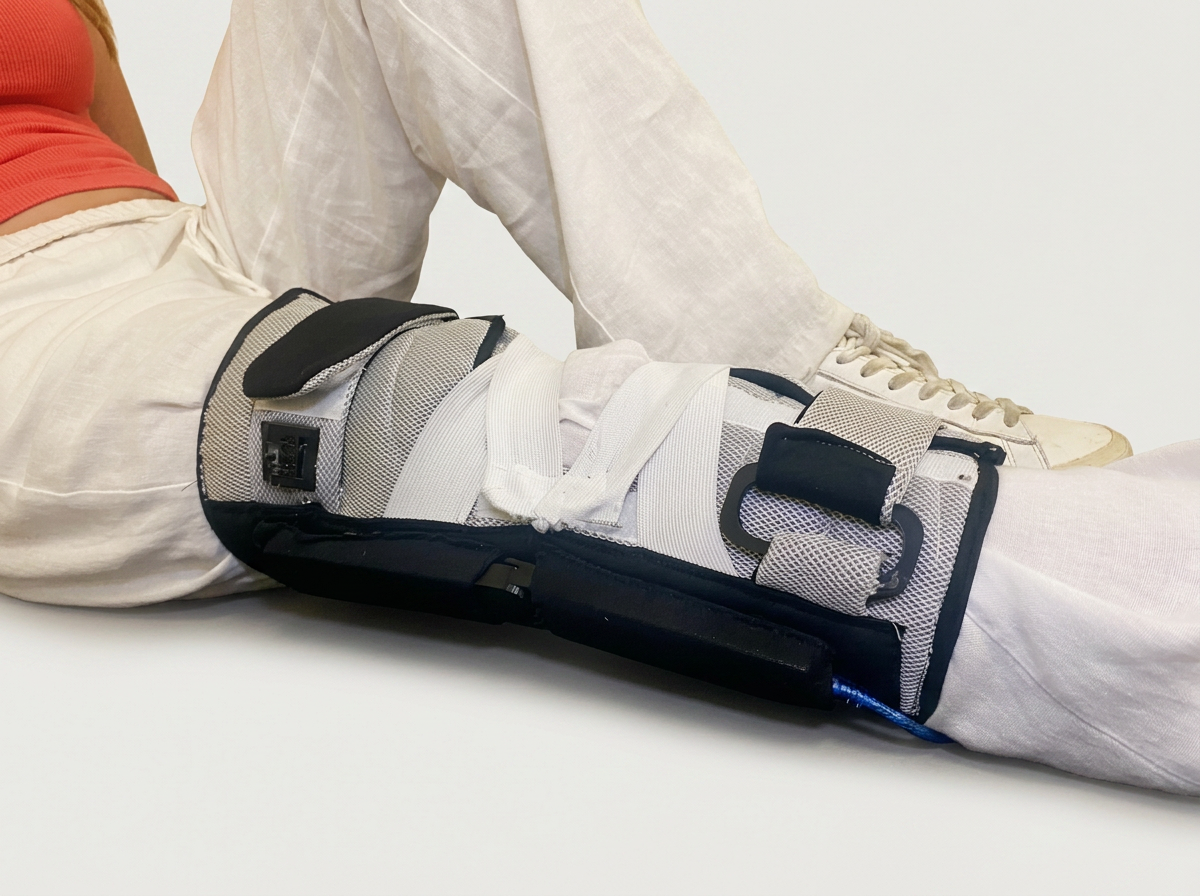

Locking side supports – hinged sides can lock at set positions to control knee bending and encourage more conscious movement.
Washable electronics – internal components can be removed, allowing the fabric brace to be washed.
Protected wiring – all wiring is concealed within the brace for comfort and safety.
